New Generation Stand-Alone NVR+NAS |
| CCTV DVR | AVH306 | |
| Live Display (Full Screen) | 720 x 480 | 640 x 480 x 6 (6 times resolution) |
| Record Image (per CH) | 360 x 240 | Full D1 or Megapixel (over 4 times resolution) |
| Camera Type | Analog camera only | 1.Compatible with AVTECH VGA, 1.3 megapixel and 2 megapixel IP cameras, and other famous brands' IP cameras. 2.Use 1CH Video Server (AVX931) to turn analog camera to IP camera. |
| Storage | Local site only | From the local site and remote site (Backup video as a NAS) |
| Remote Control | AP or Browser only | Support several mobile devices to check, hear, control and make video backup remotely |
| Setup | Easy | the same as CCTV DVR (Auto setup for AVTECH IP cameras within 3 minutes) |
| CCTV DVR | AVH306 System | Remarks(AVH306) | |
| DVR / NVR | US$70 (4CH) | US$200 (6CH) | 6CH~12CH(Option), Full HD performance |
| Camera | US$100 (4CH) | US$420 (6CH) | Based on NTSC / PAL resolution |
| Monitor (22") | US$70 | US$130 | Real HDMI TV Out |
| HDD (2TB) | US$260 | US$260 | US$130 X 2 (2TB * 2) |
| Installation Cost | US$250 (Coaxial) | US$100 (RJ45) | Reference |
| Other | X | US$25 | Hub x 1 (8 Port 10M / 100M) |
| Total | US$750 | US$1,135 | |
| Per Channel | US$187.50 | US$190 | DVR: 4CH ; NVR: 6CH |
We offer the whole series of professional NVR and IP cameras as follows:

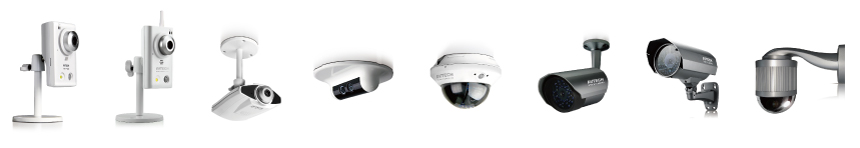

IP Camera ranges from indoor to outdoor types, from VGA to MEGAPIXEL resolution are all available to fulfill your demands. Most important of all, AVTECH’s cutting-edge technology, Push Video, allowing people to get video notified within a few seconds so that people can be able to deal with an unexpected problem on the spot.

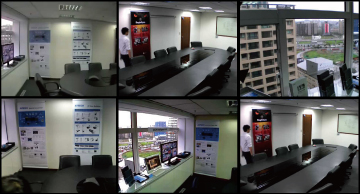

1. High Resolution Recordings
AVTECH NVR and Megapixel IP camera solution enables you to upgrade your surveillance system easily, which brings you clear images for video recording and playback.
Click the picture to see individual video playback.
2. Easy Upgrade to IP Surveillance System
To help users to upgrade analog signals to digital signals, we have adopted Plug-and-Play technology to simplify the complicated network configurations in three steps. As a result, it is easy to set up as CCTV products..
Click the picture to see video demo.
3. HDMI TV Video Out
We support 1920*1080 REAL HDMI service, giving the best image quality on LCD / LED monitors.

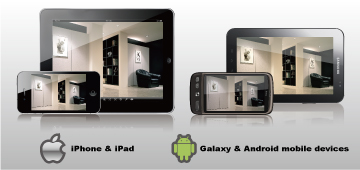

4. Multi-platform Remote Access
To access a single IP device, you may use iPhone or Android Mobile devices with “EagleEyes”;
To access 4, 9, 16 IP devices all at a time, you may use iPad with “EagleEyes HD-Plus”.

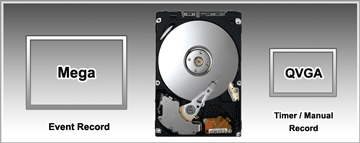

AVTECH NVR adjusts the video resolution to optimize the recording efficiency of HDD. At normal time, NVR supports QVGA, while an event occurs, it will perform megapixel recording to get the best with picture quality as evidence.
AVTECH NVR is going to support nearly every mainstream IP camera in the market in the near future to enhance users’ demands for our NVR. It also serves as a NAS for all kinds of IP cameras and AVTECH NVR on the Internet for offsite backup.

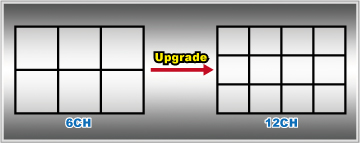

AVH306 is possible to support 12CH video inputs via firmware upgrade for different demands.
>> Accessories <<
 |
AVX912T/R This converter is used to easily upgrade your CCTV system to the megapixel IP camera with existing coaxial cabling. |
 |
AVX913T/R This converter is used to extend the HDMI transmission distance up to 100 meters with a RG-6 coaxial cable. |
 |
AVX931 AVX931 is used to turn your analog camera to IP camera. |
AVTECH new generation stand-alone NVR + NAS system is a powerful system with competitive pricing compared with CCTV DVR.
What are you waiting for?
